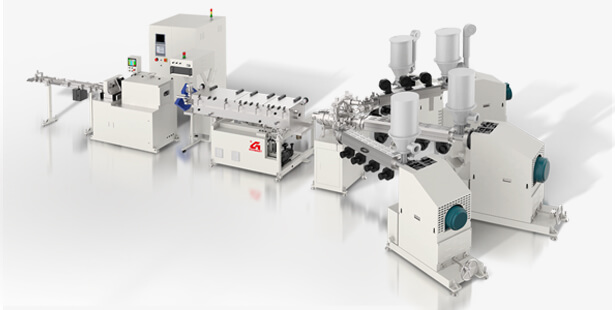

FEATURES:
- Extrusion is the first process of making PE tubes. This process ensures glossy surface, even thickness and well-balanced composition of plastic materials.
- For years of research and development, our remarkable achievements on LLDPE & LDPE melting, screw design, device of die head, material adoption, and surface treatment, together with size control by figuration and length restraint by servo motor have produced valuable and high-quality tubes.
|
MAIN SPECIFICATIONS:
- Screw Dia: 50 mm
- Screw L/D Ratio: 30/1
- Screw Type: Full Flight
- Main Motor: 20 HP with Inverter
- Heater: 17.5 kw, 7 Section Control
- Water consumption: 30 L/min, 5~10℃
- Power consumption: 58.5 kw
- Extrusion Linear Speed: 8 m/min
Medium Speed: 8 m/min (EDC-08-01)
High Speed: 16 m/min (EDC-16-01)
- Cutting Speed:
Medium Speed: 100 pcs/min (EDC-08-01)
High Speed: 160 pcs/min (EDC-16-1)
- Tube Dia Range: 19~60 mm
- Machine Size: 6000x 1200x 1800 mm
- Total Net Weight: approx. 2250 kg
|
